Multi Axis CNC Pipe Bending Machine
WhatsApp ContactTechnicial Specifications

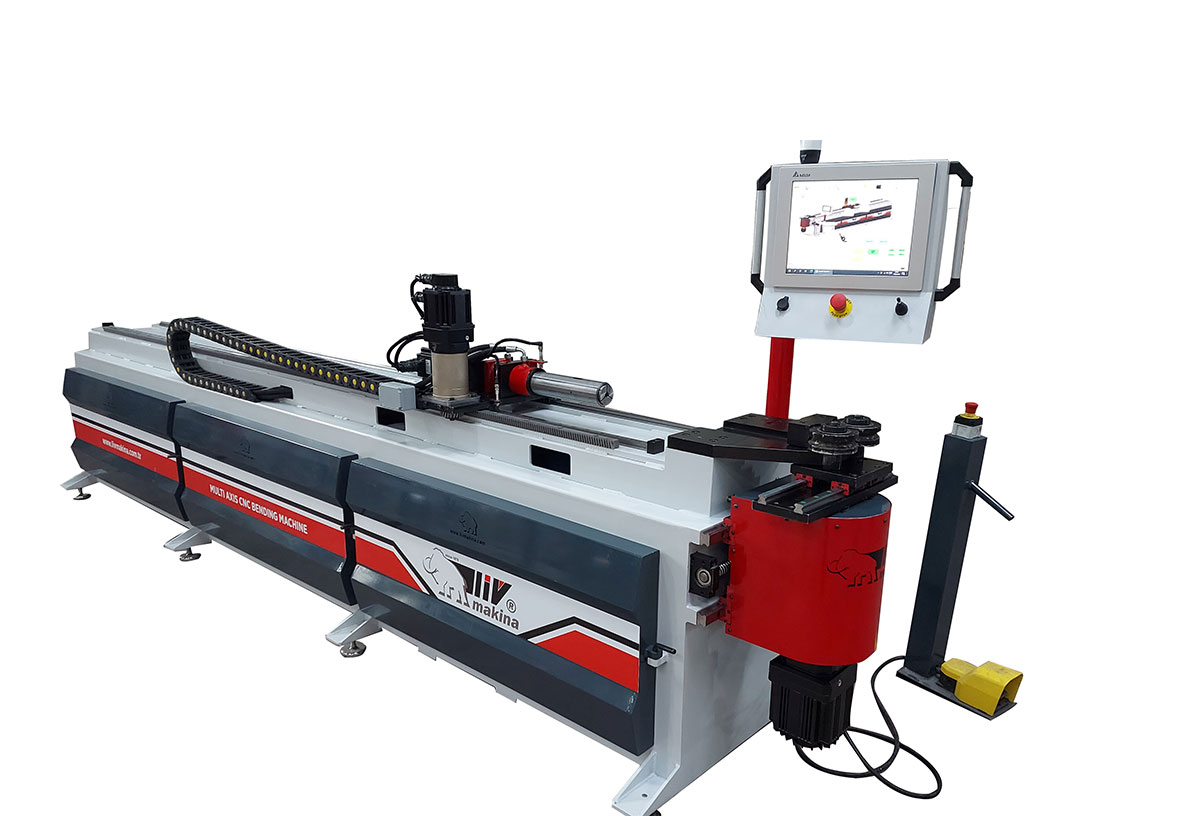

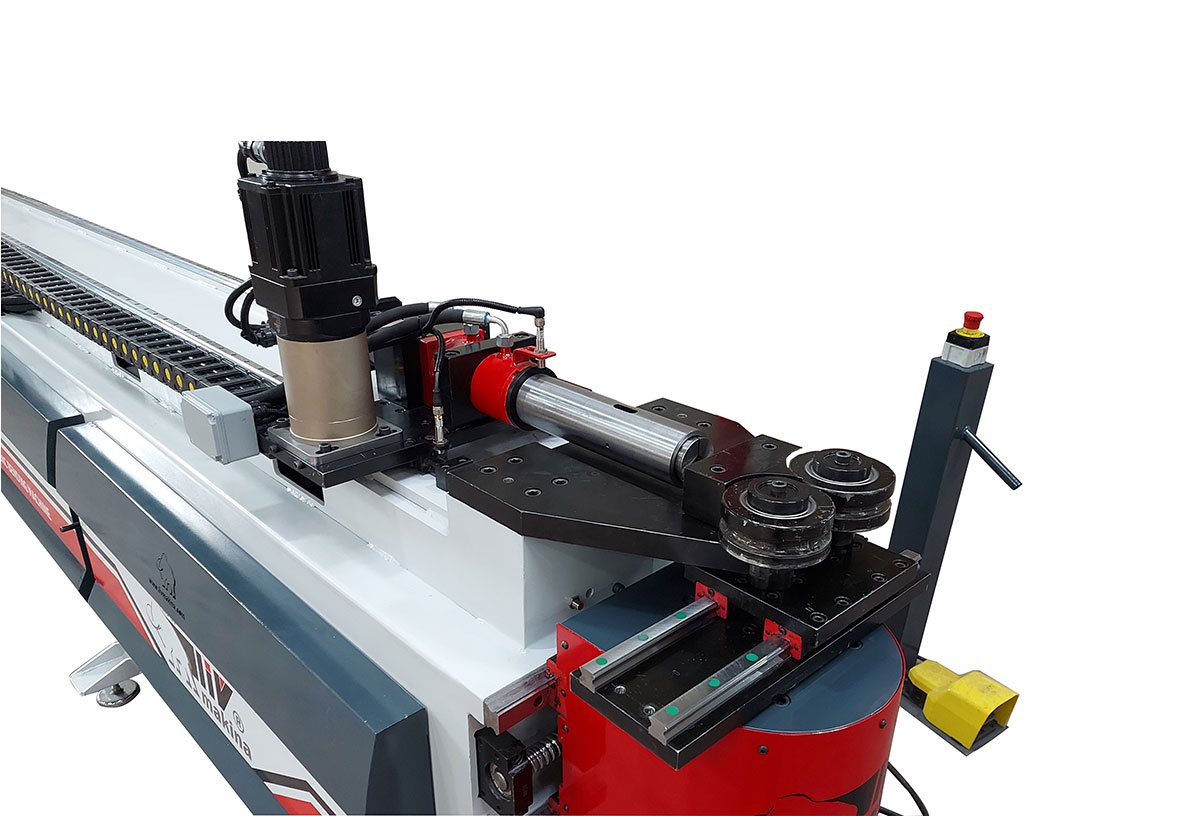

MULTI AXIS CNC TUBE BENDING MACHINE
Livmakina's affordable tube bending machines are designed to produce your bending applications reliably and accurately. Our Multi-Axis CNC pipe bending machine provides high quality and high precision in narrow radius and sharp bends.
- Direct drawing transfer to machine by USB
- Right and Left bending system
- Multiple language options
- 3D Simulation
- Ability to bend without mandrel
- Automatic Tube Length Calculation
- Complies with CE norms
- Able to see errors on screen
- Security warning system
- Easy usage by Livmak simple interface
FEATURES - SPECIFICATONS LVH–MULTI-CNC
Max Bending Capacity – Max Bending Capacity Ø25 mm x 2 mm
Min/Max. Mold Diameter – Min / Max Mold Size 60/250 mm
Material processing length – Material Process Length 3500 mm
Warranty Month – Warranty (Month) 12
Windows 10 + 15” PC
Twisting Accuracy ± 0.1
Bend Angle ± 190
3D Simulation – 3D Simulation
Servo Feed – Servo Feeding
Servo Rotation – Servo Rotation
