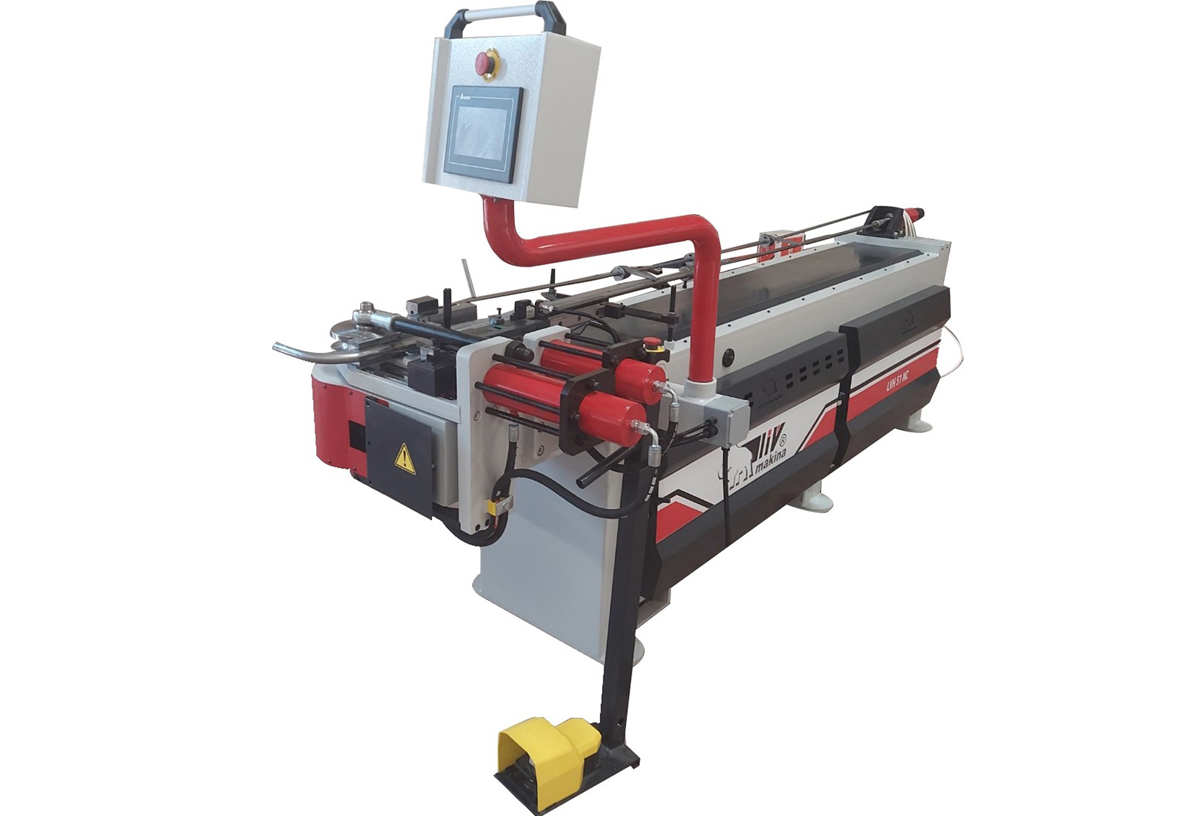

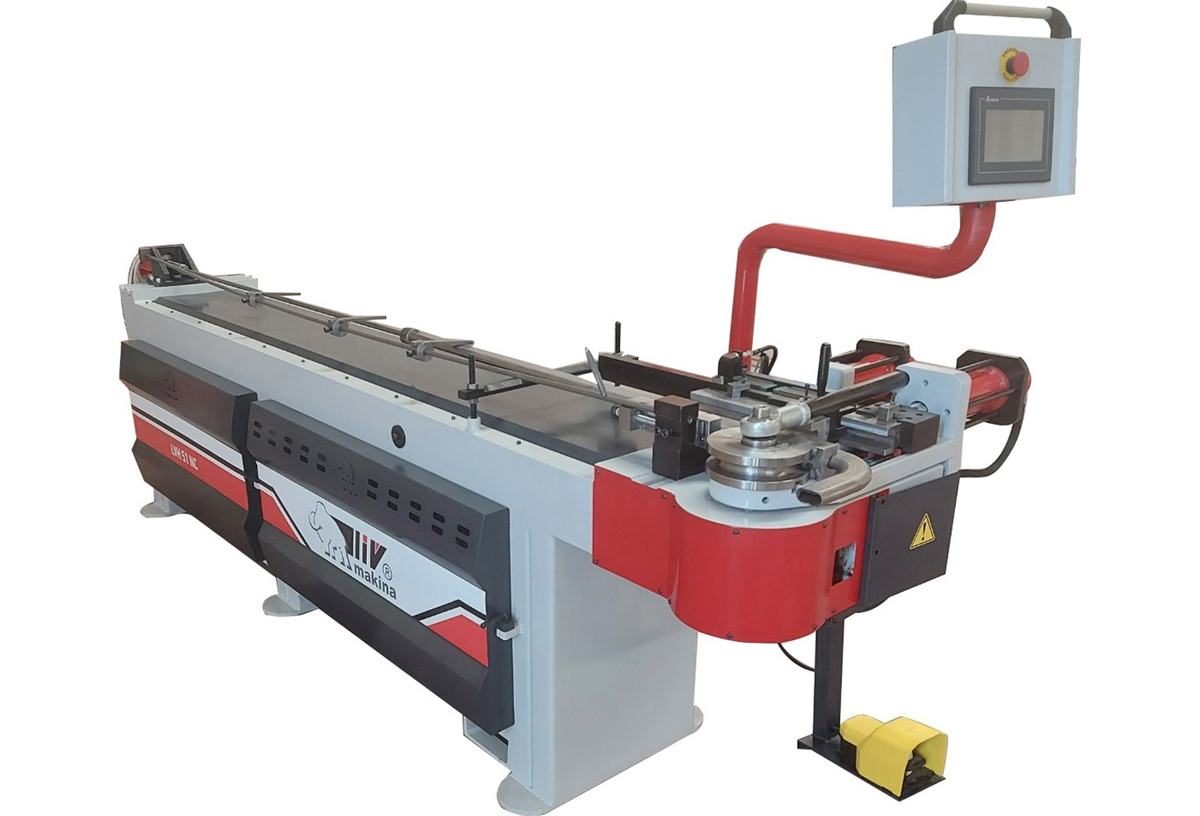

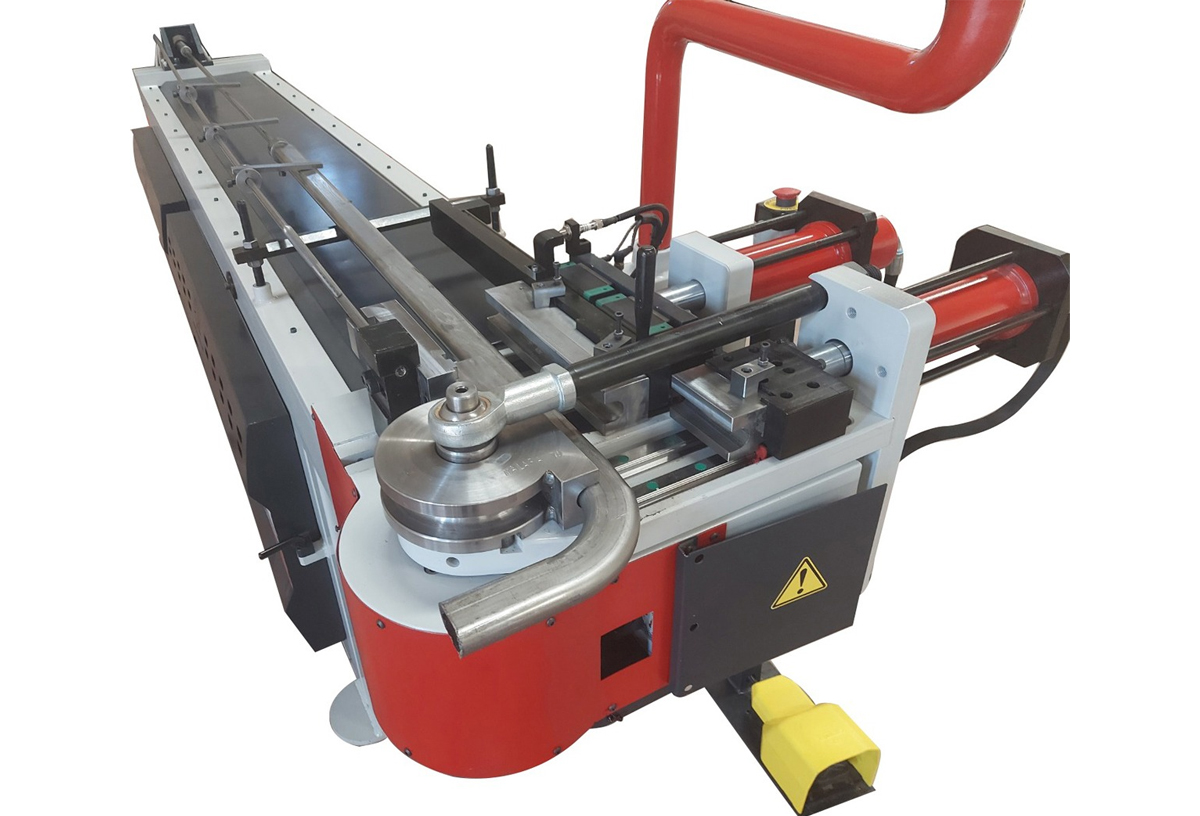

51 Nc Hydraulic Semi Automatic Mandrel Tube Bending Machine
WhatsApp ContactTechnicial Specifications
The NC series tube bender equipped with an NC control unit with Touch Screen Interface. Livmak NC series tube bender combines easy-to-use operation with high tube bending accuracy and cost-effectiveness. It is a practical semi-automatic solution for small to medium productions. Up to 10 programmable bends.
- Maximum bending capacity: 51 x 2.5 mm
- Maximum die diameter: 280 mm
- Minimum die diameter: 100 mm
- Maximum bending angle: 190°
- Hydraulic Bending System
- Hydraulic Clamp
- Hydraulic Sledge
- hydraulic Mandrel
- PLC Electrical System
- Touch screen operator panel
- Being able to see the daily and total production amount on the screen
- Foot pedal control
- Opportunity to work with and without mandrel
- 1 year warranty
- Conforms to CE norms
